18.5: Evidence of Evolution

18.5.1: The Fossil Record as Evidence for Evolution

Learning Objective

Synthesize the contributions of the fossil record to our understanding of evolution

Key Points

• Fossils are the preserved remains or traces of animals, plants, and other organisms from the past.
• Fossils are important evidence for evolution because they show that life on earth was once different from life found on earth today.
• Usually only a portion of an organism is preserved as a fossil, such as body fossils (bones and exoskeletons), trace fossils (feces and footprints), and chemofossils (biochemical signals).
• Paleontologists can determine the age of fossils using methods like radiometric dating and categorize them to determine the evolutionary relationships between organisms.

Key Terms

fossil record

All discovered and undiscovered fossils and their placement in rock formations and sedimentary layers.

biomarker

A substance used as an indicator of a biological state, most commonly disease.

trace fossil

A type of fossil reflecting the reworking of sediments and hard substrates by organisms including structures like burrows, trails, and impressions.

strata

Layers of sedimentary rock.

fossiliferous

Containing fossils.

What Fossils Tell Us

Fossils are the preserved remains or traces of animals, plants, and other organisms from the past. Fossils range in age from 10,000 to 3.48 billion years old. The observation that certain fossils were associated with certain rock strata led 19th century geologists to recognize a geological timescale. Like extant organisms, fossils vary in size from microscopic, like single-celled bacteria, to gigantic, like dinosaurs and trees.

"Sue" T-rex skeleton

The bones of this Tyrannosaurus rex were preserved through the process of permineralization, which suggests that this organism was covered by sediment soon after death.

Permineralization

Permineralization is a process of fossilization that occurs when an organism is buried. The empty spaces within an organism (spaces filled with liquid or gas during life) become filled with mineral-rich groundwater. Minerals precipitate from the groundwater, occupying the empty spaces. This process can occur in very small spaces, such as within the cell wall of a plant cell. Small-scale permineralization can produce very detailed fossils. For permineralization to occur, the organism must be covered by sediment soon after death, or soon after the initial decay process.

The degree to which the remains are decayed when covered determines the later details of the fossil. Fossils usually consist of the portion of the organisms that was partially mineralized during life, such as the bones and teeth of vertebrates or the chitinous or calcareous exoskeletons of invertebrates. However, other fossils contain traces of skin, feathers or even soft tissues.

Trace Fossils

Fossils may also consist of the marks left behind by the organism while it was alive, such as footprints or feces. These types of fossils are called trace fossils, or ichnofossils, as opposed to body fossils. Past life may also leave some markers that cannot be seen but can be detected in the form of biochemical signals; these are known as chemofossils or biomarkers.

Dinosaur footprints

Footprints are examples of trace fossils, which contribute to the fossil record.

The Fossil Record

The totality of fossils, both discovered and undiscovered, and their placement in fossiliferous (fossil-containing) rock formations and sedimentary layers (strata) is known as the fossil record. The fossil record was one of the early sources of data underlying the study of evolution and continues to be relevant to the history of life on Earth. The development of radiometric dating techniques in the early 20th century allowed geologists to determine the numerical or "absolute" age of various strata and their included fossils.

Evidence for Evolution

Fossils provide solid evidence that organisms from the past are not the same as those found today; fossils show a progression of evolution. Fossils, along with the comparative anatomy of present-day organisms, constitute the morphological, or anatomical, record. By comparing the anatomies of both modern and extinct species, paleontologists can infer the lineages of those species. This approach is most successful for organisms that had hard body parts, such as shells, bones or teeth. The resulting fossil record tells the story of the past and shows the evolution of form over millions of years.

18.5.2: Fossil Formation

Learning Objective

Predict the conditions suitable to fossil formation

Key Points

• Preservation of remains in amber or other substances is the rarest from of fossilization; this mechanism allows scientists to study the skin, hair, and organs of ancient creatures.
• Permineralization, where minerals like silica fill the empty spaces of shells, is the most common form of fossilization.
• Molds form when shells or bones dissolve, leaving behind an empty depression; a cast is then formed when the depression is filled by sediment.
• Replacement occurs when the original shell or bone dissolves away and is replaced by a different mineral; when this occurs with permineralization, it is called petrification.
• In compression, the most common form of fossilization of leaves and ferns, a dark imprint of the fossil remains.
• Decay, chemical weathering, erosion, and predators are factors that deter fossilization.
• Fossilization of soft body parts is rare, and hard parts are better preserved when buried.

Key Terms

permineralization

form of fossilization in which minerals are deposited in the pores of bone and similar hard animal parts

petrification

process by which organic material is converted into stone through the replacement of the original material and the filling of the original pore spaces with minerals

amber

a hard, generally yellow to brown translucent fossil resin

Fossil Formation

The process of a once living organism becoming a fossil is called fossilization. Fossilization is a very rare process, and of all the organisms that have lived on Earth, only a tiny percentage of them ever become fossils. To see why, imagine an antelope that dies on the African plain. Most of its body is quickly eaten by scavengers, and the remaining flesh is soon eaten by insects and bacteria, leaving behind only scattered bones. As the years go by, the bones are scattered and fragmented into small pieces, eventually turning into dust and returning their nutrients to the soil. As a result, it would be rare for any of the antelope's remains to actually be preserved as a fossil.

Fossilization can occur in many ways. Most fossils are preserved in one of five processes:

• preserved remains
• permineralization
• molds and casts
• replacement
• compression

Preserved Remains

The rarest form of fossilization is the preservation of original skeletal material and even soft tissue. For example, some insects have been preserved perfectly in amber, which is ancient tree sap . In addition, several mammoths and even a Neanderthal hunter have been discovered frozen in glaciers. These preserved remains allow scientists the rare opportunity to examine the skin, hair, and organs of ancient creatures. Scientists have collected DNA from these remains and compared the DNA sequences to those of modern creatures.

Amber

The image depicts a gnat preserved in amber. A lot of insects have been found to be perfectly maintained in this ancient tree sap.

Permineralization

The most common method of fossilization is permineralization. After a bone, wood fragment, or shell is buried in sediment, it may be exposed to mineral-rich water that moves through the sediment. This water will deposit minerals, typically silica, into empty spaces, producing a fossil . Fossilized dinosaur bones, petrified wood, and many marine fossils were formed by permineralization.

Permineralization

These fossils from the Road Canyon Formation (Middle Permian of Texas) have been silicified (replaced with silica), which is a form of permineralization.

Molds and Casts

In some cases, the original bone or shell dissolves away, leaving behind an empty space in the shape of the shell or bone. This depression is called a mold. Later, the space may be filled with other sediments to form a matching cast in the shape of the original organism. Many mollusks (bivalves, snails, and squid) are commonly found as molds and casts because their shells dissolve easily .

Molds

The depression in the image is an external mold of a bivalve from the Logan Formation, Lower Carboniferous, Ohio

Replacement

In some cases, the original shell or bone dissolves away and is replaced by a different mineral. For example, shells that were originally calcite may be replaced by dolomite, quartz, or pyrite. If quartz fossils are surrounded by a calcite matrix, the calcite can be dissolved away by acid, leaving behind an exquisitely preserved quartz fossil. When permineralization and replacement occur together, the organism is said to have undergone petrification, the process of turning organic material into stone. However, replacement can occur without permineralization and vice versa.

Compression

Some fossils form when their remains are compressed by high pressure. This can leave behind a dark imprint of the fossil. Compression is most common for fossils of leaves and ferns but also can occur with other organisms.

Conditions for Fossilization

Following the death of an organism, several forces contribute to the dissolution of its remains. Decay, predators, or scavengers will typically rapidly remove the flesh. The hard parts, if they are separable at all, can be dispersed by predators, scavengers, or currents. The individual hard parts are subject to chemical weathering and erosion, as well as to splintering by predators or scavengers, which will crunch up bones for marrow and shells to extract the flesh inside. Also, an animal swallowed whole by a predator, such as a mouse swallowed by a snake, will have not just its flesh but some, and perhaps all, its bones destroyed by the gastric juices of the predator.

It would not be an exaggeration to say that the typical vertebrate fossil consists of a single bone, or tooth, or fish scale. The preservation of an intact skeleton with the bones in the relative positions they had in life requires a remarkable circumstances, such as burial in volcanic ash, burial in aeolian sand due to the sudden slumping of a sand dune, burial in a mudslide, burial by a turbidity current, and so forth. The mineralization of soft parts is even less common and is seen only in exceptionally rare chemical and biological conditions.

18.5.3: Gaps in the Fossil Record

Learning Objective

Explain the gap in the fossil record

Key Points

• The number of species known about through fossils is less than 1% of all species that have ever lived.
• Because hard body parts are more easily preserved than soft body parts, there are more fossils of animals with hard body parts, such as vertebrates, echinoderms, brachiopods, and some groups of arthropods.
• Very few fossils have been found in the period from 360 to 345 million years ago, known as Romer's gap. Theories to explain this include the period's geochemistry, errors in excavation, and limited vertebrate diversity.

Key Terms

transitional fossil

Fossilized remains of a life form that exhibits traits common to both an ancestral group and its derived descendant group.

Romer's gap

A period in the tetrapod fossil record (360 to 345 million years ago) from which excavators have not yet found relevant fossils.

Incompleteness of the Fossil Record

Each fossil discovery represents a snapshot of the process of evolution. Because of the specialized and rare conditions required for a biological structure to fossilize, many important species or groups may never leave fossils at all. Even if they do leave fossils, humans may never find them—for example, if they are buried under hundreds of feet of ice in Antarctica. The number of species known about through the fossil record is less than 5% of the number of species alive today. Fossilized species may represent less than 1% of all the species that have ever lived.

Types of Fossils in the Fossil Record

The fossil record is very uneven and is mostly comprised of fossils of organisms with hard body parts, leaving most groups of soft-bodied organisms with little to no fossil record. Groups considered to have a good fossil record, including transitional fossils between these groups, are the vertebrates, the echinoderms, the brachiopods, and some groups of arthropods. Their hard bones and shells fossilize easily, unlike the bodies of organisms like cephalopods or jellyfish.

Romer's Gap

Romer's gap is an example of an apparent gap in the tetrapod fossil record used in the study of evolutionary biology. These gaps represent periods from which no relevant fossils have been found. Romer's gap is named after paleontologist Alfred Romer, who first recognized it. Romer's gap spanned from approximately 360 to 345 million years ago, corresponding to the first 15 million years of the Carboniferous Period.

Romer's Gap

The bank of the Whiteadder Water in Scotland is one of the few known localities bearing fossils of tetrapods from Romer's gap.

There has been much debate over why there are so few fossils from this time period. Some scientists have suggested that the geochemistry of the time period caused bad conditions for fossil formation, so few organisms were fossilized. Another theory suggests that scientists have simply not yet discovered an excavation site for these fossils, due to inaccessibility or random chance.

18.5.4: Carbon Dating and Estimating Fossil Age

Learning Objective

Summarize the available methods for dating fossils

Key Points

• Determining the ages of fossils is an important step in mapping out how life evolved across geologic time.
• The study of stratigraphy enables scientists to determine the age of a fossil if they know the age of layers of rock that surround it.
• Biostratigraphy enables scientists to match rocks with particular fossils to other rocks with those fossils to determine age.
• Paleontology seeks to map out how life evolved across geologic time. A substantial hurdle is the difficulty of working out fossil ages.
• Scientists use carbon dating when determining the age of fossils that are less than 60,000 years old, and that are composed of organic materials such as wood or leather.

Key Terms

radiocarbon dating

A method of estimating the age of an artifact or biological vestige based on the relative amounts of various isotopes of carbon present in a sample.

stratigraphy

The study of rock layers and the layering process.

half-life

The time required for half of the nuclei in a sample of a specific isotope to undergo radioactive decay.

Determining Fossil Ages

Paleontology seeks to map out how life evolved across geologic time. A substantial hurdle is the difficulty of working out fossil ages. There are several different methods for estimating the ages of fossils, including:

1. stratigraphy
2. biostratigraphy
3. carbon dating

Stratigraphy

Paleontologists rely on stratigraphy to date fossils. Stratigraphy is the science of understanding the strata, or layers, that form the sedimentary record. Strata are differentiated from each other by their different colors or compositions and are exposed in cliffs, quarries, and river banks. These rocks normally form relatively horizontal, parallel layers, with younger layers forming on top.

If a fossil is found between two layers of rock whose ages are known, the fossil's age is thought to be between those two known ages. Because rock sequences are not continuous, but may be broken up by faults or periods of erosion, it is difficult to match up rock beds that are not directly adjacent.

Sedimentary layers

The layers of sedimentary rock, or strata, can be seen as horizontal bands of differently colored or differently structured materials exposed in this cliff. The deeper layers are older than the layers found at the top, which aids in determining the relative age of fossils found within the strata.

Biostratigraphy

Fossils of species that survived for a relatively short time can be used to match isolated rocks: this technique is called biostratigraphy. For instance, the extinct chordate Eoplacognathus pseudoplanus is thought to have existed during a short range in the Middle Ordovician period. If rocks of unknown age have traces of E. pseudoplanus, they have a mid-Ordovician age. Such index fossils must be distinctive, globally distributed, and occupy a short time range to be useful. Misleading results can occur if the index fossils are incorrectly dated.

Relative Dating

Stratigraphy and biostratigraphy can in general provide only relative dating (A was before B), which is often sufficient for studying evolution. This is difficult for some time periods, however, because of the barriers involved in matching rocks of the same age across continents. Family-tree relationships can help to narrow down the date when lineages first appeared. For example, if fossils of B date to X million years ago and the calculated "family tree" says A was an ancestor of B, then A must have evolved earlier.

It is also possible to estimate how long ago two living branches of a family tree diverged by assuming that DNA mutations accumulate at a constant rate. However, these "molecular clocks" are sometimes inaccurate and provide only approximate timing. For example, they are not sufficiently precise and reliable for estimating when the groups that feature in the Cambrian explosion first evolved, and estimates produced by different approaches to this method may vary as well.

Carbon Dating

Together with stratigraphic principles, radiometric dating methods are used in geochronology to establish the geological time scale. Beds that preserve fossils typically lack the radioactive elements needed for radiometric dating ("radiocarbon dating" or simply "carbon dating"). The principle of radiocarbon dating is simple: the rates at which various radioactive elements decay are known, and the ratio of the radioactive element to its decay products shows how long the radioactive element has existed in the rock. This rate is represented by the half-life, which is the time it takes for half of a sample to decay.

Half-life of Carbon-14

Radiometric dating is a technique used to date materials such as rocks or carbon, usually based on a comparison between the observed abundance of a naturally occurring radioactive isotope and its decay products, using known decay rates.

The half-life of carbon-14 is 5,730 years, so carbon dating is only relevant for dating fossils less than 60,000 years old. Radioactive elements are common only in rocks with a volcanic origin, so the only fossil-bearing rocks that can be dated radiometrically are volcanic ash layers. Carbon dating uses the decay of carbon-14 to estimate the age of organic materials, such as wood and leather.

18.5.5: The Fossil Record and the Evolution of the Modern Horse

Learning Objective

Analyze the fossil record to understand the evolution of horses

Key Points

• A dog-like organism gave rise to the first horse ancestors 55-42 million years ago.
• The fossil record shows modern horses moved from tropical forests to prairie habitats, developed teeth, and grew in size.
• The first equid fossil was a tooth from the extinct species Equus curvidens found in Paris in the 1820s.
• Thomas Huxley popularized the evolutionary sequence of horses, which became one of the most common examples of clear evolutionary progression.
• Horse evolution was previously believed to be a linear progress, but after more fossils were discovered, it was determined the evolution of horses was more complex and multi-branched.
• Horses have evolved from gradual change (anagenesis) as well as abrupt progression and division (cladogenesis).

Key Terms

anagenesis

Evolution of a new species through a large scale change in gene frequency so that the new species replaces the old, rather than branching to produce an additional species.

equid

A member of the horse family.

cladogenesis

An evolutionary splitting event in which each branch and its smaller branches forms a clade.

The Fossil Record

Fossils provide evidence that organisms from the past are not the same as those found today, and demonstrate a progression of evolution. Scientists date and categorize fossils  to determine when the organisms lived relative to each other. The resulting fossil record tells the story of the past and shows the evolution of forms over millions of years.

Case Study: Evolution of the Modern Horse

Highly detailed fossil records have been recovered for sequences in the evolution of modern horses. The fossil record of horses in North America is especially rich and contains transition fossils: fossils that show intermediate stages between earlier and later forms. The fossil record extends back to a dog-like ancestor some 55 million years ago, which gave rise to the first horse-like species 55 to 42 million years ago in the genus Eohippus.

The first equid fossil was found in the gypsum quarries in Montmartre, Paris in the 1820s. The tooth was sent to the Paris Conservatory, where Georges Cuvier identified it as a browsing equine related to the tapir. His sketch of the entire animal matched later skeletons found at the site. During the H.M.S. Beagle survey expedition, Charles Darwin had remarkable success with fossil hunting in Patagonia. In 1833 in Santa Fe, Argentina, he was "filled with astonishment" when he found a horse's tooth in the same stratum as fossils of giant armadillos and wondered if it might have been washed down from a later layer, but concluded this was "not very probable." In 1836, the anatomist Richard Owen confirmed the tooth was from an extinct species, which he subsequently named Equus curvidens.

The original sequence of species believed to have evolved into the horse was based on fossils discovered in North America in the 1870s by paleontologist Othniel Charles Marsh. The sequence, from Eohippus to the modern horse (Equus), was popularized by Thomas Huxley and became one of the most widely known examples of a clear evolutionary progression. The sequence of transitional fossils was assembled by the American Museum of Natural History into an exhibit that emphasized the gradual, "straight-line" evolution of the horse.

Horse evolution

This illustration shows an artist's renderings of species derived from fossils of the evolutionary history of the horse and its ancestors. The species depicted are only four from a very diverse lineage that contains many branches, dead ends, and adaptive radiations. One of the trends, depicted here, is the evolutionary tracking of a drying climate and increase in prairie versus forest habitat reflected in forms that are more adapted to grazing and predator escape through running.

Since then, as the number of equid fossils has increased, the actual evolutionary progression from Eohippus to Equus has been discovered to be much more complex and multibranched than was initially supposed. Detailed fossil information on the rate and distribution of new equid species has also revealed that the progression between species was not as smooth and consistent as was once believed.

Although some transitions were indeed gradual progressions, a number of others were relatively abrupt in geologic time, taking place over only a few million years. Both anagenesis, a gradual change in an entire population's gene frequency, and cladogenesis, a population "splitting" into two distinct evolutionary branches, occurred, and many species coexisted with "ancestor" species at various times.

Adaptation for Grazing

The series of fossils tracks the change in anatomy resulting from a gradual drying trend that changed the landscape from a forested habitat to a prairie habitat. Early horse ancestors were originally specialized for tropical forests, while modern horses are now adapted to life on drier land. Successive fossils show the evolution of teeth shapes and foot and leg anatomy to a grazing habit with adaptations for escaping predators.

The horse belongs to the order Perissodactyla (odd-toed ungulates), the members of which all share hoofed feet and an odd number of toes on each foot, as well as mobile upper lips and a similar tooth structure. This means that horses share a common ancestry with tapirs and rhinoceroses. Later species showed gains in size, such as those of Hipparion, which existed from about 23 to 2 million years ago. The fossil record shows several adaptive radiations in the horse lineage, which is now much reduced to only one genus, Equus, with several species. Paleozoologists have been able to piece together a more complete outline of the modern horse's evolutionary lineage than that of any other animal.

18.5.6: Homologous Structures

Learning Objective

Describe the connection between evolution and the appearance of homologous structures

Key Points

• Homology is a relationship defined between structures or DNA derived from a common ancestor and illustrates descent from a common ancestor.
• Analogous structures are physically (but not genetically) similar structures that were not present the last common ancestor.
• Homology can also be partial; new structures can evolve through the combination or parts of developmental pathways.
• Analogy may also be referred to as homoplasy, which is further divided into parallelism, reversal, and convergence.

Key Terms

homoplasy

A correspondence between the parts or organs of different species acquired as the result of parallel evolution or convergence.

analogy

The relationship between characteristics that are apparently similar but did not develop from the same structure

homology

A correspondence of structures in two life forms with a common evolutionary origin, such as flippers and hands.

Homologous Structures

Homology is the relationship between structures or DNA derived from the most recent common ancestor. A common example of homologous structures in evolutionary biology are the wings of bats and the arms of primates. Although these two structures do not look similar or have the same function, genetically, they come from the same structure of the last common ancestor. Homologous traits of organisms are therefore explained by descent from a common ancestor.

It's important to note that defining two structures as homologous depends on what ancestor is being described as the common ancestor. If we go all the way back to the beginning of life, all structures are homologous!

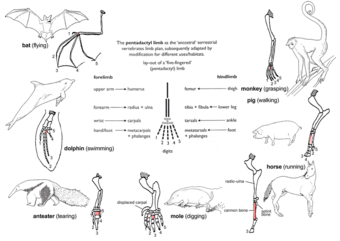

Homology in the forelimbs of vertebrates

The principle of homology illustrated by the adaptive radiation of the forelimb of mammals. All conform to the basic pentadactyl pattern but are modified for different usages. The third metacarpal is shaded throughout; the shoulder is crossed-hatched.

In genetics, homology is measured by comparing protein or DNA sequences. Homologous gene sequences share a high similarity, supporting the hypothesis that they share a common ancestor.

Homology can also be partial: new structures can evolve through the combination of developmental pathways or parts of them. As a result, hybrid or mosaic structures can evolve that exhibit partial homologies. For example, certain compound leaves of flowering plants are partially homologous both to leaves and shoots because they combine some traits of leaves and some of shoots.

Paralogous Structures

Homologous sequences are considered paralogous if they were separated by a gene duplication event; if a gene in an organism is duplicated to occupy two different positions in the same genome, then the two copies are paralogous.

A set of sequences that are paralogous are called paralogs of each other. Paralogs typically have the same or similar function, but sometimes do not. It is considered that due to lack of the original selective pressure upon one copy of the duplicated gene, this copy is free to mutate and acquire new functions.

Paralogous genes often belong to the same species, but not always. For example, the hemoglobin gene of humans and the myoglobin gene of chimpanzees are considered paralogs. This is a common problem in bioinformatics; when genomes of different species have been sequenced and homologous genes have been found, one can not immediately conclude that these genes have the same or similar function, as they could be paralogs whose function has diverged.

Analogous Structures

The opposite of homologous structures are analogous structures, which are physically similar structures between two taxa that evolved separately (rather than being present in the last common ancestor). Bat wings and bird wings evolved independently and are considered analogous structures. Genetically, a bat wing and a bird wing have very little in common; the last common ancestor of bats and birds did not have wings like either bats or birds. Wings evolved independently in each lineage after diverging from ancestors with forelimbs that were not used as wings (terrestrial mammals and theropod dinosaurs, respectively).

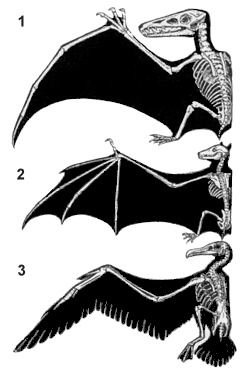

Homology vs. analogy

The wings of pterosaurs (1), bats (2), and birds (3) are analogous as wings, but homologous as forelimbs. This is because they are similar characteristically and even functionally, but evolved from different ancestral roots.

It is important to distinguish between different hierarchical levels of homology in order to make informative biological comparisons. In the above example, the bird and bat wings are analogous as wings, but homologous as forelimbs because the organ served as a forearm (not a wing) in the last common ancestor of tetrapods.

Analogy is different than homology. Although analogous characteristics are superficially similar, they are not homologous because they are phylogenetically independent. The wings of a maple seed and the wings of an albatross are analogous but not homologous (they both allow the organism to travel on the wind, but they didn't both develop from the same structure). Analogy is commonly also referred to as homoplasy.

18.5.7: Convergent Evolution

Learning Objective

Predict the circumstances supporting convergent evolution of two species

Key Points

• Examples of convergent evolution include the relationship between bat and insect wings, shark and dolphin bodies, and vertebrate and cephalopod eyes.
• Analogous structures arise from convergent evolution, but homologous structures do not.
• Convergent evolution is the opposite of divergent evolution, in which related species evolve different traits.
• Convergent evolution is similar to parallel evolution, in which two similar but independent species evolve in the same direction and independently acquire similar characteristics.

Key Terms

divergent evolution

the process by which a species with similar traits become groups that are tremendously different from each other over many generations

convergent evolution

a trait of evolution in which species not of similar recent origin acquire similar properties due to natural selection

parallel evolution

the development of a similar trait in related, but distinct, species descending from the same ancestor, but from different clades

morphology

the form and structure of an organism

Convergent Evolution

Sometimes, similar phenotypes evolve independently in distantly related species. For example, flight has evolved in both bats and insects, and they both have wings, which are adaptations to flight. However, the wings of bats and insects have evolved from very different original structures. This phenomenon is called convergent evolution, where similar traits evolve independently in species that do not share a recent common ancestry.

Examples of Convergent Evolution

Convergent evolution describes the independent evolution of similar features in species of different lineages. The two species came to the same function, flying, but did so separately from each other. They have "converged" on this useful trait. Both sharks and dolphins have similar body forms, yet are only distantly related: sharks are fish and dolphins are mammals. Such similarities are a result of both populations being exposed to the same selective pressures. Within both groups, changes that aid swimming have been favored. Thus, over time, they developed similar appearances (morphology), even though they are not closely related.

One of the most well-known examples of convergent evolution is the camera eye of cephalopods (e.g., octopus), vertebrates (e.g., mammals), and cnidaria (e.g., box jellies). Their last common ancestor had at most a very simple photoreceptive spot, but a range of processes led to the progressive refinement of this structure to the advanced camera eye. There is, however, one subtle difference: the cephalopod eye is "wired" in the opposite direction, with blood and nerve vessels entering from the back of the retina, rather than the front as in vertebrates .

Eye evolution

Vertebrates and octopi developed the camera eye independently. In the vertebrate version the nerve fibers pass in front of the retina, and there is a blind spot (4) where the nerves pass through the retina. In the octopus version, the eye is constructed the "right way out," with the nerves attached to the rear of the retina. This means that octopi do not have a blind spot.

Convergent evolution is similar to, but distinguishable from, the phenomenon of parallel evolution. Parallel evolution occurs when two independent but similar species evolve in the same direction and thus independently acquire similar characteristics; for example, gliding frogs have evolved in parallel from multiple types of tree frog.

Analogous Structures

Traits arising through convergent evolution are analogous structures, in contrast to homologous structures, which have a common origin, but not necessarily similar function. The British anatomist Richard Owen was the first scientist to recognize the fundamental difference between analogies and homologies. Bat and pterosaur wings are an example of analogous structures, while the bat wing is homologous to human and other mammal forearms, sharing an ancestral state despite serving different functions.

Divergent Evolution

The opposite of convergent evolution is divergent evolution, whereby related species evolve different traits. On a molecular level, this can happen due to random mutation unrelated to adaptive changes.

18.5.8: Vestigial Structures

Learning Objective

Discuss the connection between evolution and the existence of vestigial structures

Key Points

• Structures that have no apparent function and appear to be residual parts from a past ancestor are called vestigial structures.

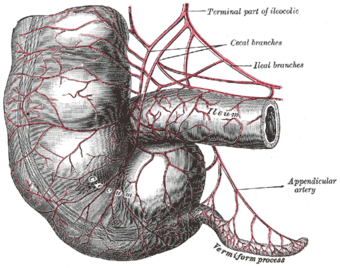

• Examples of vestigial structures include the human appendix, the pelvic bone of a snake, and the wings of flightless birds.
• Vestigial structures can become detrimental, but in most cases these structures are harmless; however, these structures, like any other structure, require extra energy and are at risk for disease.
• Vestigial structures, especially non-harmful ones, take a long time to be phased out since eliminating them would require major alterations that could result in negative side effects.

Key Terms

adaptation

A modification of something or its parts that makes it more fit for existence under the conditions of its current environment.

vestigial structure

Genetically determined structures or attributes that have lost most or all of their ancestral function in a given species.

What Are Vestigial Structures?

Some organisms possess structures with no apparent function which appear to be residual parts from a past ancestor. For example, some snakes have pelvic bones despite having no legs because they descended from reptiles that did have legs. Another example of a structure with no function is the human vermiform appendix. These unused structures without function are called vestigial structures. Other examples of vestigial structures are wings (which may have other functions) on flightless birds like the ostrich, leaves on some cacti, traces of pelvic bones in whales, and the sightless eyes of cave animals.

Vestigial appendix

In humans the vermiform appendix is a vestigial structure; it has lost much of its ancestral function.

There are also several reflexes and behaviors that are considered to be vestigial. The formation of goose bumps in humans under stress is a vestigial reflex its function in human ancestors was to raise the body's hair, making the ancestor appear larger and scaring off predators. The arrector pili muscle, which is a band of smooth muscle that connects the hair follicle to connective tissue, contracts and creates the goose bumps on skin.

Vestigial Structures in Evolution

Vestigial structures are often homologous to structures that function normally in other species. Therefore, vestigial structures can be considered evidence for evolution, the process by which beneficial heritable traits arise in populations over an extended period of time. The existence of vestigial traits can be attributed to changes in the environment and behavior patterns of the organism in question. As the function of the trait is no longer beneficial for survival, the likelihood that future offspring will inherit the "normal" form of it decreases. In some cases the structure becomes detrimental to the organism.

Whale Skeleton

The pelvic bones in whales are also a good example of vestigial evolution (whales evolved from four-legged land mammals and secondarily lost their hind legs). Letter c in the picture indicates the undeveloped hind legs of a baleen whale.

If there are no selection pressures actively lowering the fitness of the individual, the trait will persist in future generations unless the trait is eliminated through genetic drift or other random events.

Although in many cases the vestigial structure is of no direct harm, all structures require extra energy in terms of development, maintenance, and weight and are also a risk in terms of disease (e.g., infection, cancer). This provides some selective pressure for the removal of parts that do not contribute to an organism's fitness, but a structure that is not directly harmful will take longer to be 'phased out' than one that is. Some vestigial structures persist due to limitations in development, such that complete loss of the structure could not occur without major alterations of the organism's developmental pattern, and such alterations would likely produce numerous negative side-effects.

The vestigial versions of a structure can be compared to the original version of the structure in other species in order to determine the homology of the structure. Homologous structures indicate common ancestry with those organisms that have a functional version of the structure. Vestigial traits can still be considered adaptations because an adaptation is often defined as a trait that has been favored by natural selection. Adaptations, therefore, need not be adaptive, as long as they were at some point.

18.5.9: Biogeography and the Distribution of Species

Learning Objective

Relate biogeography and the distribution of species

Key Points

• Biogeography is the study of geological species distribution, which is influenced by both biotic and abiotic factors.
• Some species are endemic and are only found in a particular region, while others are generalists and are distributed worldwide.
• Species that evolved before the breakup of continents are distributed worldwide.
• Species that evolved after the breakup of continents are found in only certain regions of the planet.

Key Terms

Pangaea

supercontinent that included all the landmasses of the earth before the Triassic period and that broke up into Laurasia and Gondwana

generalist

species which can thrive in a wide variety of environmental conditions

endemic

unique to a particular area or region; not found in other places

Distribution of Species

Biogeography is the study of the geographic distribution of living things and the abiotic factors that affect their distribution. Abiotic factors, such as temperature and rainfall, vary based on latitude and elevation, primarily. As these abiotic factors change, the composition of plant and animal communities also changes.

Patterns of Species Distribution

Ecologists who study biogeography examine patterns of species distribution. No species exists everywhere; for example, the Venus flytrap is endemic to a small area in North and South Carolina. An endemic species is one which is naturally found only in a specific geographic area that is usually restricted in size. Other species are generalists: species which live in a wide variety of geographic areas; the raccoon, for example, is native to most of North and Central America.

Since species distribution patterns are based on biotic and abiotic factors and their influences during the very long periods of time required for species evolution, early studies of biogeography were closely linked to the emergence of evolutionary thinking in the eighteenth century. Some of the most distinctive assemblages of plants and animals occur in regions that have been physically separated for millions of years by geographic barriers. Biologists estimate that Australia, for example, has between 600,000 and 700,000 species of plants and animals. Approximately 3/4 of living plant and mammal species are endemic species found solely in Australia .

Australia

Australia is home to many endemic species. The (a) wallaby (Wallabia bicolor), a medium-sized member of the kangaroo family, is a pouched mammal, or marsupial. The (b) echidna (Tachyglossus aculeatus) is an egg-laying mammal.

The geographic distribution of organisms on the planet follows patterns that are best explained by evolution in conjunction with the movement of tectonic plates over geological time. Broad groups that evolved before the breakup of the supercontinent Pangaea (about 200 million years ago) are distributed worldwide. Groups that evolved since the breakup appear uniquely in regions of the planet, such as the unique flora and fauna of northern continents that formed from the supercontinent Laurasia and of the southern continents that formed from the supercontinent Gondwana. The presence of Proteaceae in Australia, southern Africa, and South America is best explained by the plant family's presence there prior to the southern supercontinent Gondwana breaking up .

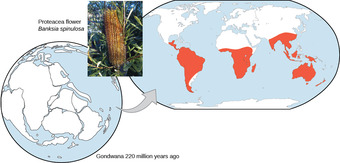

Biogeography

The Proteacea family of plants evolved before the supercontinent Gondwana broke up. Today, members of this plant family are found throughout the southern hemisphere (shown in red).

Attributions

• The Fossil Record as Evidence for Evolution
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "OpenStax College, Evidence of Evolution. December 6, 2013." http://cnx.org/content/m45491/latest/. OpenStax CNX CC BY 3.0.
  • "trace fossil." http://en.wiktionary.org/wiki/trace_fossil. Wiktionary CC BY-SA 3.0.
  • "Fossil." http://en.wikipedia.org/wiki/Fossil. Wikipedia CC BY-SA 3.0.
  • "Fossil." http://en.wikipedia.org/wiki/Fossil%23Modern_view. Wikipedia CC BY-SA 3.0.
  • "fossiliferous." http://en.wiktionary.org/wiki/fossiliferous. Wiktionary CC BY-SA 3.0.
  • "biomarker." http://en.wiktionary.org/wiki/biomarker. Wiktionary CC BY-SA 3.0.
  • "800px-Dinosaur_Ridge_tracks.JPG." https://en.wikipedia.org/wiki/Ichnology%23mediaviewer/File:Dinosaur_Ridge_tracks.JPG. Wikipedia CC BY-SA 3.0.
  • "1024px-Sues_skeleton.jpg." https://en.wikipedia.org/wiki/Tyrannosaurus%23mediaviewer/File:Sues_skeleton.jpg. Wikipedia CC BY-SA 2.0.
• Fossil Formation
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "petrification." http://en.wikipedia.org/wiki/petrification. Wikipedia CC BY-SA 3.0.
  • "amber." http://en.wiktionary.org/wiki/amber. Wiktionary CC BY-SA 3.0.
  • "permineralization." http://en.wiktionary.org/wiki/permineralization. Wiktionary CC BY-SA 3.0.
  • "High School Earth Science/Fossils." http://en.wikibooks.org/wiki/High_School_Earth_Science/Fossils. Wikibooks CC BY-SA 3.0.
  • "Historical Geology/Fossils." http://en.wikibooks.org/wiki/Historical_Geology/Fossils. Wikibooks CC BY-SA 3.0.
  • "Historical Geology/Fossils." http://en.wikibooks.org/wiki/Historical_Geology/Fossils. Wikibooks CC BY-SA 3.0.
  • "Fossil." http://en.wikipedia.org/wiki/Fossil. Wikipedia CC BY.
  • "Fossil." http://en.wikipedia.org/wiki/Fossil. Wikipedia CC BY.
  • "Historical Geology/Fossils." http://en.wikibooks.org/wiki/Historical_Geology/Fossils. Wikibooks CC BY-SA 3.0.
• Gaps in the Fossil Record
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "transitional fossil." http://en.wikipedia.org/wiki/transitional%20fossil. Wikipedia CC BY-SA 3.0.
  • "Romer's gap." http://en.wikipedia.org/wiki/Romer's_gap. Wikipedia CC BY-SA 3.0.
  • "Romer's gap." http://en.wikipedia.org/wiki/Romer's_gap. Wikipedia CC BY-SA 3.0.
  • "Romer's gap." http://en.wikipedia.org/wiki/Romer's%20gap. Wikipedia CC BY-SA 3.0.
  • "Transitional fossil." http://en.wikipedia.org/wiki/Transitional_fossil%23Misunderstandings. Wikipedia CC BY-SA 3.0.
  • "Fossil." http://en.wikipedia.org/wiki/Fossil%23Linnaeus_and_Darwin. Wikipedia CC BY-SA 3.0.
  • "Romer's gap." http://en.wikipedia.org/wiki/Romer's_gap. Wikipedia CC BY.
• Carbon Dating and Estimating Fossil Age
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "Radioactive decay Chain." https://en.wikipedia.org/wiki/Radiometric_dating. Wikipedia CC BY-SA 3.0.
  • "Fossil." http://en.wikipedia.org/wiki/Fossil%23cite_note-Martin2000-12. Wikipedia CC BY-SA 3.0.
  • "Fossil." http://en.wikipedia.org/wiki/Fossil%23cite_note-Martin2000-12. Wikipedia CC BY-SA 3.0.
  • "Radiocarbon dating." http://en.wikipedia.org/wiki/Radiocarbon_dating. Wikipedia CC BY-SA 3.0.
  • "Stratum." http://en.wikipedia.org/wiki/Stratum. Wikipedia CC BY-SA 3.0.
  • "stratigraphy." http://en.wiktionary.org/wiki/stratigraphy. Wiktionary CC BY-SA 3.0.
  • "radiocarbon dating." http://en.wiktionary.org/wiki/radiocarbon_dating. Wiktionary CC BY-SA 3.0.
  • "half-life." http://en.wiktionary.org/wiki/half-life. Wiktionary CC BY-SA 3.0.
  • "800px-Thorium_decay_chain_from_lead-212_to_lead-208.svg.png." https://commons.wikimedia.org/wiki/File:Thorium_decay_chain_from_lead-212_to_lead-208.svg. Wikipedia CC BY-SA 3.0.
  • "Geology of Cyprus-Chalk." http://en.wikipedia.org/wiki/File:Geology_of_Cyprus-Chalk.jpg. Wikipedia CC BY.
  • "Radioactive_decay_of_Carbon-14.png." https://commons.wikimedia.org/wiki/File:Radioactive_decay_of_Carbon-14.png. Wikipedia CC BY-SA 3.0.
• The Fossil Record and the Evolution of the Modern Horse
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "Evolution of the horse." http://en.wikipedia.org/wiki/Evolution_of_the_horse%23History_of_research. Wikipedia CC BY-SA 3.0.
  • "Evolution of the horse." http://en.wikipedia.org/wiki/Evolution_of_the_horse%23History_of_research. Wikipedia CC BY-SA 3.0.
  • "cladogenesis." http://en.wiktionary.org/wiki/cladogenesis. Wiktionary CC BY-SA 3.0.
  • "anagenesis." http://en.wiktionary.org/wiki/anagenesis. Wiktionary CC BY-SA 3.0.
  • "OpenStax College, Evidence of Evolution. December 6, 2013." http://cnx.org/content/m45491/latest/. OpenStax CNX CC BY 3.0.
  • "OpenStax College, Evidence of Evolution. December 6, 2013." http://cnx.org/content/m45491/latest/. OpenStax CNX CC BY 3.0.
• Homologous Structures
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "Homology (biology)." http://en.wikipedia.org/wiki/Homology_(biology)%23Anatomical_homology. Wikipedia CC BY-SA 3.0.
  • "Homology (biology)." http://en.wikipedia.org/wiki/Homology_(biology)%23Anatomical_homology. Wikipedia CC BY-SA 3.0.
  • "homology." http://en.wiktionary.org/wiki/homology. Wiktionary CC BY-SA 3.0.
  • "homoplasy." http://en.wiktionary.org/wiki/homoplasy. Wiktionary CC BY-SA 3.0.
  • "analogy." http://en.wiktionary.org/wiki/analogy. Wiktionary CC BY-SA 3.0.
  • "Homology." http://www.newworldencyclopedia.org/entry/Homology_(biology). New World Encyclopedia CC BY-SA 3.0.
  • "Homology_vertebrates.svg." https://commons.wikimedia.org/wiki/File:Homology_vertebrates-en.svg. Wikipedia CC BY-SA 4.0.
  • "800px-Evolution_pl.png." https://en.wikipedia.org/wiki/File:Evolution_pl.png. Wikipedia CC BY-SA 3.0.
  • "Homology (biology)." http://en.wikipedia.org/wiki/Homology_(biology)%23Anatomical_homology. Wikipedia CC BY.
• Convergent Evolution
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "Convergent evolution." http://en.wikipedia.org/wiki/Convergent_evolution%23Significance. Wikipedia CC BY-SA 3.0.
  • "parallel evolution." http://en.wikipedia.org/wiki/parallel%20evolution. Wikipedia CC BY-SA 3.0.
  • "Convergent evolution." http://en.wikipedia.org/wiki/Convergent_evolution. Wikipedia CC BY-SA 3.0.
  • "convergent evolution." http://en.wiktionary.org/wiki/convergent_evolution. Wiktionary CC BY-SA 3.0.
  • "OpenStax College, Understanding Evolution. December 7, 2013." http://cnx.org/content/m44568/latest/. OpenStax CNX CC BY 3.0.
  • "General Biology/Introduction to Evolution." http://en.wikibooks.org/wiki/General_Biology/Introduction_to_Evolution. Wikibooks CC BY-SA 3.0.
  • "morphology." http://en.wiktionary.org/wiki/morphology. Wiktionary CC BY-SA 3.0.
  • "Convergent evolution." http://en.wikipedia.org/wiki/Convergent_evolution. Wikipedia CC BY.
• Vestigial Structures
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "OpenStax College, Evidence of Evolution. December 6, 2013." http://cnx.org/content/m45491/latest/. OpenStax CNX CC BY 3.0.
  • "vestigial structure." http://en.wiktionary.org/wiki/vestigial_structure. Wiktionary CC BY-SA 3.0.
  • "adaptation." http://en.wiktionary.org/wiki/adaptation. Wiktionary CC BY-SA 3.0.
  • "Vestigiality." http://en.wikipedia.org/wiki/Vestigiality%23Common_descent_and_evolutionary_theory. Wikipedia CC BY-SA 3.0.
  • "Vestigiality." http://en.wikipedia.org/wiki/Vestigiality%23Common_descent_and_evolutionary_theory. Wikipedia CC BY-SA 3.0.
  • "Vestigiality." http://en.wikipedia.org/wiki/Vestigiality%23Common_descent_and_evolutionary_theory. Wikipedia CC BY.
  • "Whale Skeleton." https://commons.wikimedia.org/wiki/File:Whale_skeleton.png. Wikipedia Public domain.
• Biogeography and the Distribution of Species
  • "Boundless." http://www.boundless.com/. Boundless Learning CC BY-SA 3.0.
  • "endemic." http://en.wiktionary.org/wiki/endemic. Wiktionary CC BY-SA 3.0.
  • "Pangaea." http://en.wiktionary.org/wiki/Pangaea. Wiktionary CC BY-SA 3.0.
  • "generalist." http://en.wiktionary.org/wiki/generalist. Wiktionary CC BY-SA 3.0.
  • "OpenStax College, Evidence of Evolution. December 7, 2013." http://cnx.org/content/m45491/latest/. OpenStax CNX CC BY 3.0.
  • "OpenStax College, Biogeography. December 7, 2013." http://cnx.org/content/m44857/latest/. OpenStax CNX CC BY 3.0.
  • "OpenStax College, Biogeography. December 7, 2013." http://cnx.org/content/m44857/latest/. OpenStax CNX CC BY 3.0.
  • "OpenStax College, Evidence of Evolution. December 7, 2013." http://cnx.org/content/m45491/latest/. OpenStax CNX CC BY 3.0.
