36.2: Somatosensation

36.2.1: Somatosensory Receptors

Learning Objective

Describe the structure and function of mechanoreceptors

Key Points

• The four major types of tactile mechanoreceptors include: Merkel's disks, Meissner's corpuscles, Ruffini endings, and Pacinian corpuscles.
• Merkel's disk are slow-adapting, unencapsulated nerve endings that respond to light touch; they are present in the upper layers of skin that has hair or is glabrous.
• Meissner's corpuscles are rapidly-adapting, encapsulated neurons that responds to low-frequency vibrations and fine touch; they are located in the glabrous skin on fingertips and eyelids.
• Ruffini endings are slow adapting, encapsulated receptors that respond to skin stretch and are present in both the glabrous and hairy skin.
• -Pacinian corpuscles are rapidly-adapting, deep receptors that respond to deep pressure and high-frequency vibration.

Key Terms

glabrous

smooth, hairless, bald

dendrite

branched projections of a neuron that conduct the impulses received from other neural cells to the cell body

Somatosensory Receptors

Sensory receptors are classified into five categories: mechanoreceptors, thermoreceptors, proprioceptors, pain receptors, and chemoreceptors. These categories are based on the nature of the stimuli that each receptor class transduces. Mechanoreceptors in the skin are described as encapsulated or unencapsulated. A free nerve ending is an unencapsulated dendrite of a sensory neuron; they are the most common nerve endings in skin. Free nerve endings are sensitive to painful stimuli, to hot and cold, and to light touch. They are slow to adjust to a stimulus and so are less sensitive to abrupt changes in stimulation.

Mechanoreceptors

There are three classes of mechanoreceptors: tactile, proprioceptors, and baroreceptors. Mechanoreceptors sense stimuli due to physical deformation of their plasma membranes. They contain mechanically-gated ion channels whose gates open or close in response to pressure, touch, stretching, and sound. There are four primary tactile mechanoreceptors in human skin: Merkel's disks, Meissner's corpuscles, Ruffini endings, and Pacinian corpuscle; two are located toward the surface of the skin and two are located deeper . A fifth type of mechanoreceptor, Krause end bulbs, are found only in specialized regions.

Primary mechanoreceptors

Four of the primary mechanoreceptors in human skin are shown. Merkel's disks, which are unencapsulated, respond to light touch. Meissner's corpuscles, Ruffini endings, Pacinian corpuscles, and Krause end bulbs are all encapsulated. Meissner's corpuscles respond to touch and low-frequency vibration. Ruffini endings detect stretch, deformation within joints, and warmth. Pacinian corpuscles detect transient pressure and high-frequency vibration. Krause end bulbs detect cold.

Merkel's disks are found in the upper layers of skin near the base of the epidermis, both in skin that has hair and on glabrous skin; that is, the hairless skin found on the palms and fingers, the soles of the feet, and the lips of humans and other primates. Merkel's disks are densely distributed in the fingertips and lips. They are slow-adapting, unencapsulated nerve endings, which respond to light touch. Light touch, also known as discriminative touch, is a light pressure that allows the location of a stimulus to be pinpointed. The receptive fields of Merkel's disks are small, with well-defined borders. That makes them very sensitive to edges; they come into use in tasks such as typing on a keyboard.

Meissner's corpuscles, also known as tactile corpuscles, are found in the upper dermis, but they project into the epidermis . They are found primarily in the glabrous skin on the fingertips and eyelids. They respond to fine touch and pressure, but they also respond to low-frequency vibration or flutter. They are rapidly- adapting, fluid-filled, encapsulated neurons with small, well-defined borders which are responsive to fine details. Merkel's disks and Meissner's corpuscles are not as plentiful in the palms as they are in the fingertips.

Meissner corpuscles

Meissner corpuscles in the fingertips, such as the one viewed here using bright field light microscopy, allow for touch discrimination of fine detail.

Deeper in the dermis, near the base, are Ruffini endings, which are also known as bulbous corpuscles. They are found in both glabrous and hairy skin. These are slow-adapting, encapsulated mechanoreceptors that detect skin stretch and deformations within joints; they provide valuable feedback for gripping objects and controlling finger position and movement. Thus, they also contribute to proprioception and kinesthesia. Ruffini endings also detect warmth. Note that these warmth detectors are situated deeper in the skin than are the cold detectors. It is not surprising, then, that humans detect cold stimuli before they detect warm stimuli.

Pacinian corpuscles, located deep in the dermis of both glabrous and hairy skin, are structurally similar to Meissner's corpuscles. They are found in the bone periosteum, joint capsules, pancreas and other viscera, breast, and genitals . They are rapidly-adapting mechanoreceptors that sense deep, transient (not prolonged) pressure, and high-frequency vibration. Pacinian receptors detect pressure and vibration by being compressed which stimulates their internal dendrites. There are fewer Pacinian corpuscles and Ruffini endings in skin than there are Merkel's disks and Meissner's corpuscles.

Pacinian corpuscles

Pacinian corpuscles, such as these visualized using bright field light microscopy, detect pressure (touch) and high-frequency vibration.

36.2.2: Integration of Signals from Mechanoreceptors

Learning Objective

Describe how the density of mechanoreceptors affects the receptive field

Key Points

• The various types of receptors, nociceptors, mechanoreceptors (both small and large), thermoreceptors, chemoreceptors, and proprioreceptors, work together to ensure that complex stimuli are transmitted properly to the brain for processing.
• The distribution of mechanoreceptors within the body can affect how stimuli are perceived; this is dependent on the size of the receptive field and whether single or multiple sensory receptors are activated.
• A large receptive field allows for detection of stimuli over a wide area, but can result in less precise detection; a small receptive field allows for detection of stimuli over a small area, which results in more precise detection.
• The two-point discrimination test can be used to determine the density of receptors within various locations by measuring whether a two-point stimulus (such as thumb tacks) is detected as one or two points.

Key Term

mechanoreceptor

any receptor that provides an organism with information about mechanical changes in its environment, such as movement, tension and pressure

Integration of Signals from Mechanoreceptors

The configuration of the different types of receptors working in concert in the human skin results in a very refined sense of touch . The nociceptive receptors (those that detect pain) are located near the surface. Small, finely-calibrated mechanoreceptors (Merkel's disks and Meissner's corpuscles) are located in the upper layers and can precisely localize even gentle touch. The large mechanoreceptors (Pacinian corpuscles and Ruffini endings) are located in the lower layers and respond to deeper touch. Consider that the deep pressure that reaches those deeper receptors would not need to be finely localized. Both the upper and lower layers of the skin hold rapidly- and slowly-adapting receptors. Both primary somatosensory cortex and secondary cortical areas are responsible for processing the complex picture of stimuli transmitted from the interplay of mechanoreceptors.

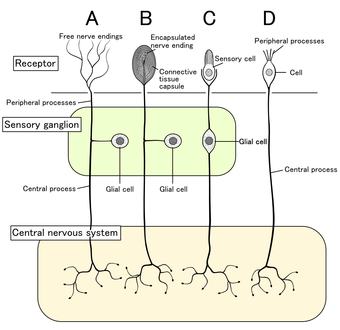

Sensory receptor structure

Structure of four different types of sensory receptors found within the sensory system.

Density of Mechanoreceptors

In the somatosensory system, receptive fields are regions of the skin or of internal organs. During the transmission of sensory information from these fields, the signals must be conveyed to the nervous system. The mechanoreceptors are activated, the signal is conveyed, and then processed. Some types of mechanoreceptors have large receptive fields, while others have smaller ones. Large receptive fields allow the cell to detect changes over a wider area, but lead to a less-precise perception. Touch receptors are denser in glabrous skin (the type found on human fingertips and lips, for example), which is typically more sensitive and is thicker than hairy skin (4 to 5 mm versus 2 to 3 mm). Thus, the fingers, which require the ability to detect fine detail, have many, densely-packed (up to 500 per cubic cm) mechanoreceptors with small receptive fields (around 10 square mm), while the back and legs, for example, have fewer receptors with large receptive fields. Receptors with large receptive fields usually have a "hot spot": an area within the receptive field (usually in the center, directly over the receptor) where stimulation produces the most intense response. Tactile-sense-related cortical neurons have receptive fields on the skin that can be modified by experience or by injury to sensory nerves, resulting in changes in the field's size and position. In general, these neurons have relatively large receptive fields (much larger than those of dorsal root ganglion cells). However, the neurons are able to discriminate fine detail due to patterns of excitation and inhibition relative to the field, which leads to spatial resolution.

The relative density of pressure receptors in different locations on the body can be demonstrated experimentally using a two-point discrimination test. In this demonstration, two sharp points, such as two thumbtacks, are brought into contact with the subject's skin (though not hard enough to cause pain or break the skin). The subject reports if they feel one point or two points. If the two points are felt as one point, it can be inferred that the two points are both in the receptive field of a single sensory receptor. If two points are felt as two separate points, each is in the receptive field of two separate sensory receptors. The points could then be moved closer and re-tested until the subject reports feeling only one point. The size of the receptive field of a single receptor could be estimated from that distance.

36.2.3: Thermoreception

Learning Objective

Describe the various types of receptors used for thermoreception:  Krause end bulbs, Ruffini endings, free nerve endings

Key Points

• Thermoreceptors can include: Krause end bulbs, which detect cold and are defined by capsules; Ruffini endings, which detect warmth and are defined by enlarged dendritic endings; and warm and cold receptors present on free nerve endings which can detect a range of temperature.
• The cold receptors present on free nerve endings, that can be either lightly-myelinated or unmyelinated, have a maximum sensitivity at ~ 27°C and will signal temperatures above 17°C.
• The warm receptors present on free nerve endings are unmyelinated fibers that have a maximum senstivity of ~45°C and will signal temperature above 30°C.

Key Terms

epineurium

the connective tissue framework and sheath of a nerve which bind together the nerve bundles, each of which has its own special sheath, or perineurium

somatosensory

of or pertaining to the perception of sensory stimuli produced by the skin or internal organs

thermoreceptor

a nerve cell that is sensitive to changes in temperature

Thermoreception

Thermoception or thermoreception is the sense by which an organism perceives temperatures. The details of how temperature receptors work are still being investigated. Mammals have at least two types of sensors: those that detect heat (i.e., temperatures above body temperature) and those that detect cold (i.e., temperatures below body temperature). A thermoreceptor is a sensory receptor or, more accurately, the receptive portion of a sensory neuron that codes absolute and relative changes in temperature, primarily within the innocuous range. The adequate stimulus for a warm receptor is warming, which results in an increase in their action potential discharge rate; cooling results in a decrease in warm receptor discharge rate. For cold receptors, their firing rate increases during cooling and decreases during warming. The types of receptors capable of detecting changes in temperature can vary.

Types of Thermoreceptors: Capsule Receptors

Some of the receptors that exhibit the ability to detect changes in temperature include Krause end bulbs and Ruffini endings. Krause end bulbs are defined by cylindrical or oval bodies consisting of a capsule that is formed by the expansion of the connective-tissue sheath, containing an axis-cylinder core . End-bulbs are found in the conjunctiva of the eye, in the mucous membrane of the lips and tongue, and in the epineurium of nerve trunks. They are also found in the penis and the clitoris; hence, the name of genital corpuscles. In these locations, they have a mulberry-like appearance, being constricted by connective-tissue septa into two to six knob-like masses.

Krause end bulb

A drawing of a Krause end bulb receptor which can detect cold.

The Ruffini endings, enlarged dendritic endings with elongated capsules, can act as thermoreceptors . This spindle-shaped receptor is sensitive to skin stretch, contributing to the kinesthetic sense of and control of finger position and movement. Ruffini corpuscles respond to sustained pressure and show very little adaptation. Ruffinian endings are located in the deep layers of the skin where they register mechanical deformation within joints as well as continuous pressure states.They also act as thermoreceptors that respond for an extended period; in case of deep burn, there will be no pain as these receptors will be burned off.

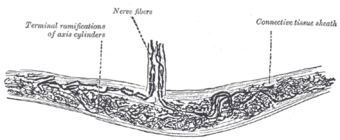

Ruffini endings

A drawing of a Ruffini ending receptor which can detect warmth.

In addition to Krause end bulbs that detect cold and Ruffini endings that detect warmth, there are different types of cold receptors on free nerve endings.

Types of Thermoreceptors: Free Nerve Endings

There are thermoreceptors that are located in the dermis, skeletal muscles, liver, and hypothalamus that are activated by different temperatures. These thermoreceptors, which have free nerve endings, include only two types of thermoreceptors that signal innocuous warmth and cooling respectively in our skin. The warm receptors show a maximum sensitivity at ~ 45°C, signal temperatures between 30 and 45°C, and cannot unambiguously signal temperatures higher than 45°C; they are unmyelinated. The cold receptors have their maximum sensitivity at ~ 27°C, signal temperatures above 17°C, and some consist of lightly-myelinated fibers, while others are unmyelinated. Our sense of temperature comes from the comparison of the signals from the warm and cold receptors. Thermoreceptors are poor indicators of absolute temperature, but are very sensitive to changes in skin temperature.

The Thermoreceptor Pathway

The thermoreceptor pathway in the brain runs from the spinal cord through the thalamus to the primary somatosensory cortex. Warmth and cold information from the face travels through one of the cranial nerves to the brain. You know from experience that a tolerably cold or hot stimulus can quickly progress to a much more intense stimulus that is no longer tolerable. Any stimulus that is too intense can be perceived as pain because temperature sensations are conducted along the same pathways that carry pain sensations.
