8.2: The Light-Dependent Reactions of Photosynthesis

8.2.1: Introduction to Light Energy

Learning Objective

Explain the difference between short and long wavelengths.

Key Points

• The amount of energy of a wave can be determined by measuring its wavelength, the distance between consecutive points of a wave.
• Visible light is a type of radiant energy within the electromagnetic spectrum; other types of electromagnetic radiation include UV, infrared, gamma, and radio rays as well as X-rays.
• The difference between wavelengths relates to the amount of energy carried by them; short, tight waves carry more energy than long, wide waves.

Key Terms

visible light

the part of the electromagnetic spectrum, between infrared and ultraviolet, that is visible to the human eye

wavelength

the length of a single cycle of a wave, as measured by the distance between one peak or trough of a wave and the next; it corresponds to the velocity of the wave divided by its frequency

electromagnetic spectrum

the entire range of wavelengths of all known radiations consisting of oscillating electric and magnetic fields, including gamma rays, visible light, infrared, radio waves, and X-rays

What Is Light Energy?

The sun emits an enormous amount of electromagnetic radiation (solar or light energy). Humans can see only a fraction of this energy, which is referred to as "visible light." The manner in which solar energy travels is described as waves. Scientists can determine the amount of energy of a wave by measuring its wavelength, the distance between consecutive points of a wave, such as from crest to crest or from trough to trough .

Wavelengths

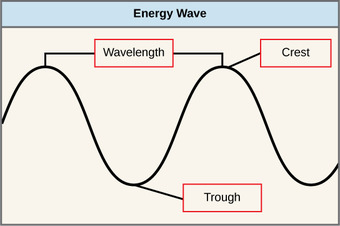

The wavelength of a single wave is the distance between two consecutive points of similar position (two crests or two troughs) along the wave.

Visible light constitutes only one of many types of electromagnetic radiation emitted from the sun and other stars. The electromagnetic spectrum is the range of all possible frequencies of radiation . The electromagnetic spectrum shows several types of electromagnetic radiation originating from the sun, including X-rays and ultraviolet (UV) rays. The higher-energy waves can penetrate tissues and damage cells and DNA, which explains why both X-rays and UV rays can be harmful to living organisms. Scientists differentiate the various types of radiant energy from the sun within the electromagnetic spectrum.The difference between wavelengths relates to the amount of energy carried by them.

The Electromagnetic Spectrum

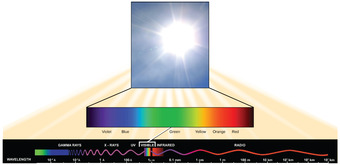

The sun emits energy in the form of electromagnetic radiation. This radiation exists at different wavelengths, each of which has its own characteristic energy. All electromagnetic radiation, including visible light, is characterized by its wavelength.

Each type of electromagnetic radiation travels at a particular wavelength. The longer the wavelength, the less energy is carried. Short, tight waves carry the most energy. This may seem illogical, but think of it in terms of a person moving a heavy rope. It takes little effort by a person to move a rope in long, wide waves. To make a rope move in short, tight waves, a person would need to apply significantly more energy.

8.2.2: Absorption of Light

Learning Objective

Differentiate between chlorophyll and carotenoids.

Key Points

• Plant pigment molecules absorb only light in the wavelength range of 700 nm to 400 nm; this range is referred to as photosynthetically-active radiation.
• Violet and blue have the shortest wavelengths and the most energy, whereas red has the longest wavelengths and carries the least amount of energy.
• Pigments reflect or transmit the wavelengths they cannot absorb, making them appear in the corresponding color.
• Chorophylls and carotenoids are the major pigments in plants; while there are dozens of carotenoids, there are only five important chorophylls: a, b, c, d, and bacteriochlorophyll.
• Chlorophyll a absorbs light in the blue-violet region, chlorophyll b absorbs red-blue light, and both a and b reflect green light (which is why chlorophyll appears green).
• Carotenoids absorb light in the blue-green and violet region and reflect the longer yellow, red, and orange wavelengths; these pigments also dispose excess energy out of the cell.

Key Terms

chlorophyll

Any of a group of green pigments that are found in the chloroplasts of plants and in other photosynthetic organisms such as cyanobacteria.

carotenoid

Any of a class of yellow to red plant pigments including the carotenes and xanthophylls.

spectrophotometer

An instrument used to measure the intensity of electromagnetic radiation at different wavelengths.

Absorption of Light

Light energy initiates the process of photosynthesis when pigments absorb the light. Organic pigments have a narrow range of energy levels that they can absorb. Energy levels lower than those represented by red light are insufficient to raise an orbital electron to an excited, or quantum, state. Energy levels higher than those in blue light will physically tear the molecules apart, a process called bleaching. For example, retinal pigments can only "see" (absorb) 700 nm to 400 nm light; this is visible light. For the same reasons, plant pigment molecules absorb only light in the wavelength range of 700 nm to 400 nm; plant physiologists refer to this range for plants as photosynthetically-active radiation.

The visible light seen by humans as the color white light actually exists in a rainbow of colors in the electromagnetic spectrum, with violet and blue having shorter wavelengths and, thus, higher energy. At the other end of the spectrum, toward red, the wavelengths are longer and have lower energy .

Visible Light

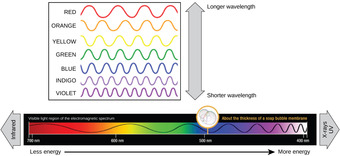

The colors of visible light do not carry the same amount of energy. Violet has the shortest wavelength and, therefore, carries the most energy, whereas red has the longest wavelength and carries the least amount of energy.

Understanding Pigments

Different kinds of pigments exist, each of which has evolved to absorb only certain wavelengths or colors of visible light. Pigments reflect or transmit the wavelengths they cannot absorb, making them appear in the corresponding color.

Chlorophylls and carotenoids are the two major classes of photosynthetic pigments found in plants and algae; each class has multiple types of pigment molecules. There are five major chlorophylls: a, b, c and d, along with a related molecule found in prokaryotes called bacteriochlorophyll.

With dozens of different forms, carotenoids are a much larger group of pigments. The carotenoids found in fruit, such as the red of tomato (lycopene), the yellow of corn seeds (zeaxanthin), or the orange of an orange peel (β-carotene), are used to attract seed-dispersing organisms. In photosynthesis, carotenoids function as photosynthetic pigments that are very efficient molecules for the disposal of excess energy. When a leaf is exposed to full sun, the light-dependent reactions are required to process an enormous amount of energy; if that energy is not handled properly, it can do significant damage. Therefore, many carotenoids are stored in the thylakoid membrane to absorb excess energy and safely release that energy as heat.

Each type of pigment can be identified by the specific pattern of wavelengths it absorbs from visible light, which is the absorption spectrum. Chlorophyll a absorbs light in the blue-violet region, while chlorophyll b absorbs red-blue light. Neither a or b absorb green light; because green is reflected or transmitted, chlorophyll appears green. Carotenoids absorb light in the blue-green and violet region and reflect the longer yellow, red, and orange wavelengths .

Chlorophyll a and b

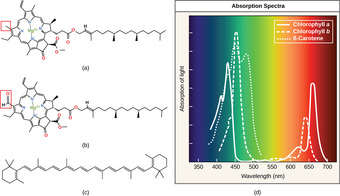

(a) Chlorophyll a, (b) chlorophyll b, and (c) β-carotene are hydrophobic organic pigments found in the thylakoid membrane. Chlorophyll a and b, which are identical except for the part indicated in the red box, are responsible for the green color of leaves. β-carotene is responsible for the orange color in carrots. Each pigment has (d) a unique absorbance spectrum.

Many photosynthetic organisms have a mixture of pigments. In this way organisms can absorb energy from a wider range of wavelengths. Not all photosynthetic organisms have full access to sunlight. Some organisms grow underwater where light intensity and quality decrease and change with depth. Other organisms grow in competition for light. Plants on the rainforest floor must be able to absorb any light that comes through because the taller trees absorb most of the sunlight and scatter the remaining solar radiation

Pigments in Plants

Plants that commonly grow in the shade have adapted to low levels of light by changing the relative concentrations of their chlorophyll pigments.

When studying a photosynthetic organism, scientists can determine the types of pigments present by using a spectrophotometer. These instruments can differentiate which wavelengths of light a substance can absorb. Spectrophotometers measure transmitted light and compute its absorption. By extracting pigments from leaves and placing these samples into a spectrophotometer, scientists can identify which wavelengths of light an organism can absorb.

8.2.3: Processes of the Light-Dependent Reactions

Learning Objective

Describe how light energy is converted into ATP and NADPH.

Key Points

• Light energy splits water and extracts electrons in photosystem II (PSII); then electrons are moved from PSII to cytochrome b6f to photosystem I (PSI) and reduce in energy.
• Electrons are re-energized in PSI and those high energy electrons reduce NADP⁺ to NADPH.
• In non-cyclic photophosphorylation, cytochrome b6f uses the energy of electrons from PSII to pump hydrogen ions from the lumen to the stroma; this energy allows ATP synthase to attach a third phosphate group to ADP, which forms ATP.
• In cyclic photophosphorylation, cytochrome b6f uses the energy of electrons from both PSII and PSI to create more ATP and to stop the production of NADPH, maintaining the right proportions of NADPH and ATP.

Key Terms

chemiosmosis

The movement of ions across a selectively permeable membrane, down their electrochemical gradient.

photophosphorylation

The addition of a phosphate (PO43-) group to a protein or other organic molecule by photosynthesis.

photosystem

Either of two biochemical systems, active in chloroplasts, that are part of photosynthesis.

How Light-Dependent Reactions Work

The overall function of light-dependent reactions, the first stage of photosynthesis, is to convert solar energy into chemical energy in the form of NADPH and ATP, which are used in light-independent reactions and fuel the assembly of sugar molecules. Protein complexes and pigment molecules work together to produce NADPH and ATP.

Producing Chemical Energy

Light energy is converted into chemical energy in a multiprotein complex called a photosystem. Two types of photosystems, photosystem I (PSI) and photosystem II (PSII), are found in the thylakoid membrane inside the chloroplast . Each photosystem consists of multiple antenna proteins that contain a mixture of 300–400 chlorophyll a and b molecules, as well as other pigments like carotenoids. Cytochrome b6f complex and ATP synthase are also major protein complexes in the thylakoid membrane that work with the photosystems to create ATP and NADPH.

Photosystems I & II

A photosystem consists of a light-harvesting complex and a reaction center. Pigments in the light-harvesting complex pass light energy to two special chlorophyll a molecules in the reaction center. The light excites an electron from the chlorophyll a pair, which passes to the primary electron acceptor. The excited electron must then be replaced. In (a) photosystem II, the electron comes from the splitting of water, which releases oxygen as a waste product. In (b) photosystem I, the electron comes from the chloroplast electron transport chain.

The two photosystems absorb light energy through proteins containing pigments, such as chlorophyll. The light-dependent reactions begin in photosystem II . In PSII, energy from sunlight is used to split water, which releases two electrons, two hydrogen atoms, and one oxygen atom. When a chlorophyll a molecule within the reaction center of PSII absorbs a photon, the electron in this molecule attains a higher energy level. Because this state of an electron is very unstable, the electron is transferred to another molecule creating a chain of redox reactions called an electron transport chain (ETC). The electron flow goes from PSII to cytochrome b6f to PSI; as electrons move between these two photosystems, they lose energy. Because the electrons have lost energy prior to their arrival at PSI, they must be re-energized by PSI. Therefore, another photon is absorbed by the PSI antenna. That energy is transmitted to the PSI reaction center. This reaction center, known as P700, is oxidized and sends a high-energy electron to reduce NADP+ to NADPH. This process illustrates oxygenic photosynthesis, wherein the first electron donor is water and oxygen is created as a waste product.

Photosystem II

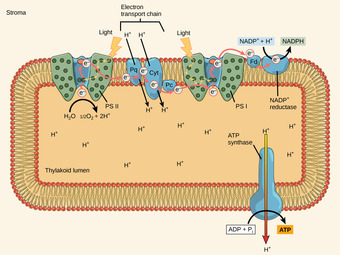

In the photosystem II (PSII) reaction center, energy from sunlight is used to extract electrons from water. The electrons travel through the chloroplast electron transport chain to photosystem I (PSI), which reduces NADP+ to NADPH. The electron transport chain moves protons across the thylakoid membrane into the lumen. At the same time, splitting of water adds protons to the lumen while reduction of NADPH removes protons from the stroma. The net result is a low pH in the thylakoid lumen and a high pH in the stroma. ATP synthase uses this electrochemical gradient to make ATP.

Cytochrome b6f and ATP synthase work together to create ATP. This process, called photophosphorylation, occurs in two different ways. In non-cyclic photophosphorylation, cytochrome b6f uses the energy of electrons from PSII to pump hydrogen ions from the lumen (an area of high concentration) to the stroma (an area of low concentration). The energy released by the hydrogen ion stream allows ATP synthase to attach a third phosphate group to ADP, which forms ATP . This flow of hydrogen ions through ATP synthase is called chemiosmosis because the ions move from an area of high to an area of low concentration through a semi-permeable structure. In cyclic photophosphorylation, cytochrome b6f uses the energy of electrons from both PSII and PSI to create more ATP and to stop the production of NADPH. Cyclic phosphorylation is important to maintain the right proportions of NADPH and ATP, which will carry out light-independent reactions later on.

The net-reaction of all light-dependent reactions in oxygenic photosynthesis is: 2H₂O + 2NADP+ + 3ADP + 3Pi → O₂ + 2NADPH + 3ATP
