12.1 Structure and Function of the Nervous System

Learning Objectives

By the end of this section, you will be able to:

Relate the anatomical structures to the basic functions of the nervous system.

  • Identify the anatomical and functional divisions of the nervous system
  • List the basic functions of the nervous system

The Central and Peripheral Nervous Systems

The picture you have in your mind of the nervous system probably includes the brain, the nervous tissue contained within the cranium, and the spinal cord, the extension of nervous tissue within the vertebral column. Additionally, the nervous tissue that reach out from the brain and spinal cord to the rest of the body (nerves) are also part of the nervous system. We can anatomically divide the nervous system into two major regions: the central nervous system (CNS) is the brain and spinal cord, the peripheral nervous system (PNS) is the nerves (Figure 12.1.1). The brain is contained within the cranial cavity of the skull, and the spinal cord is contained within the vertebral canal of the vertebral column. The peripheral nervous system is so named because it is in the periphery—meaning beyond the brain and spinal cord.

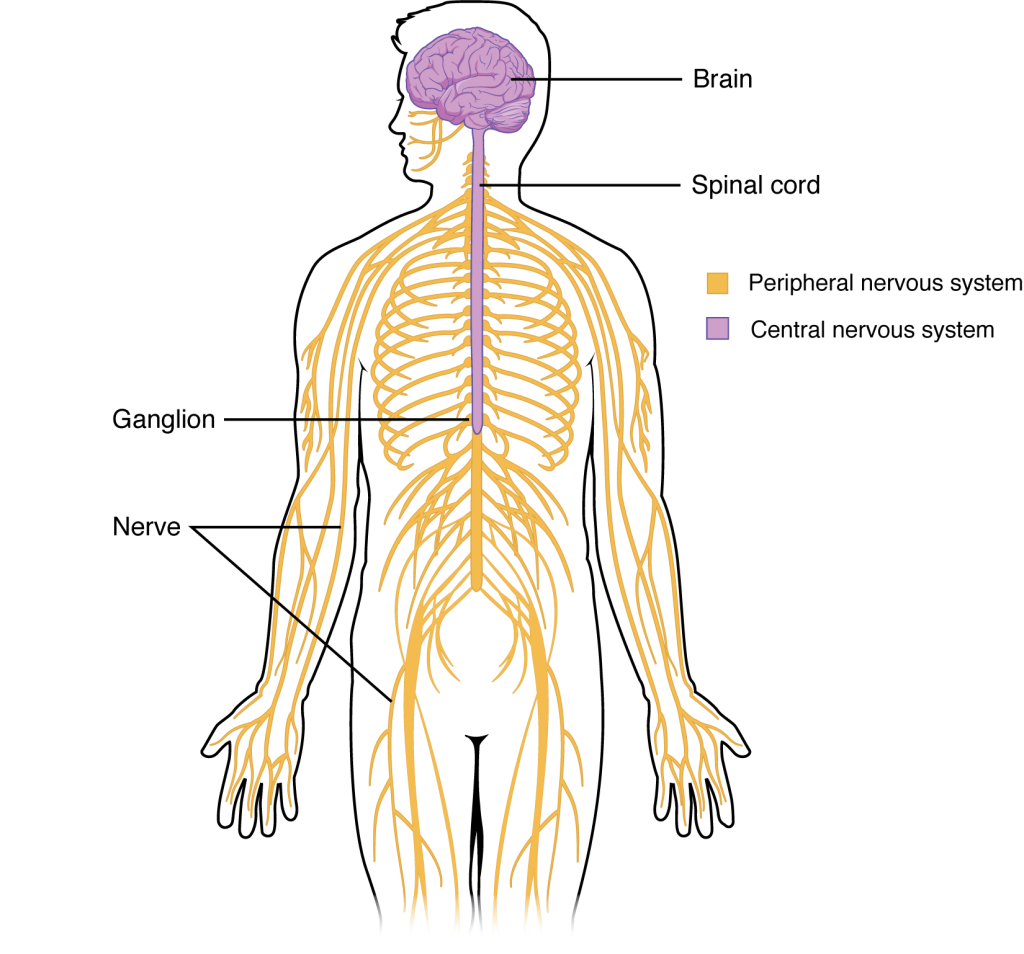

This diagram shows a silhouette of a human highlighting the nervous system. The central nervous system is composed of the brain and spinal cord. The brain is a large mass of ridged and striated tissue within the head. The spinal cord extends down from the brain and travels through the torso, ending in the pelvis. Pairs of enlarged nervous tissue, labeled ganglia, flank the spinal cord as it travels through the rib area. The ganglia are part of the peripheral nervous system, along with the many thread-like nerves that radiate from the spinal cord and ganglia through the arms, abdomen and legs.
Figure 12.1.1 – Central and Peripheral Nervous System: The CNS contains the brain and spinal cord, the PNS includes nerves.

Functional Divisions of the Nervous System

In addition to the anatomical divisions listed above, the nervous system can also be divided on the basis of its functions. The nervous system is involved in receiving information about the environment around us (sensory functions, sensation) and generating responses to that information (motor functions, responses) and coordinating the two (integration).

Sensation. Sensation refers to receiving information about the environment, either what is happening outside (ie: heat from the sun) or inside the body (ie: heat from muscle activity). These sensations are known as stimuli (singular = stimulus) and different sensory receptors are responsible for detecting different stimuli. Sensory information travels towards the CNS through the PNS nerves in the specific division known as the afferent (sensory) branch of the PNS. When information arises from sensory receptors in the skin, skeletal muscles, or joints, it is transmitted to the CNS using somatic sensory neurons; when information arises from sensory receptors in the blood vessels or internal organs, it is transmitted to the CNS using visceral sensory neurons.

Response. The nervous system produces a response in effector organs (such as muscles or glands) due to the sensory stimuli. The motor (efferent) branch of the PNS carries signals away from the CNS to the effector organs. When the effector organ is a skeletal muscle, the neuron carrying the information is called a somatic motor neuron; when the effector organ is cardiac or smooth muscle or glandular tissue, the neuron carrying the information is called an autonomic motor neuron. Voluntary responses are governed by somatic motor neurons and involuntary responses are governed by the autonomic motor neurons, which are discussed in the next section.

Integration. Stimuli that are detected by sensory structures are communicated to the nervous system where information is processed. In the CNS, information from some stimuli is compared with, or integrated with, information from other stimuli or memories of previous stimuli. Then, a motor neuron is activated to initiate a response from the effector organ. This process during which sensory information is processed and a motor response generated is called integration (see Figure 12.1.2 below).

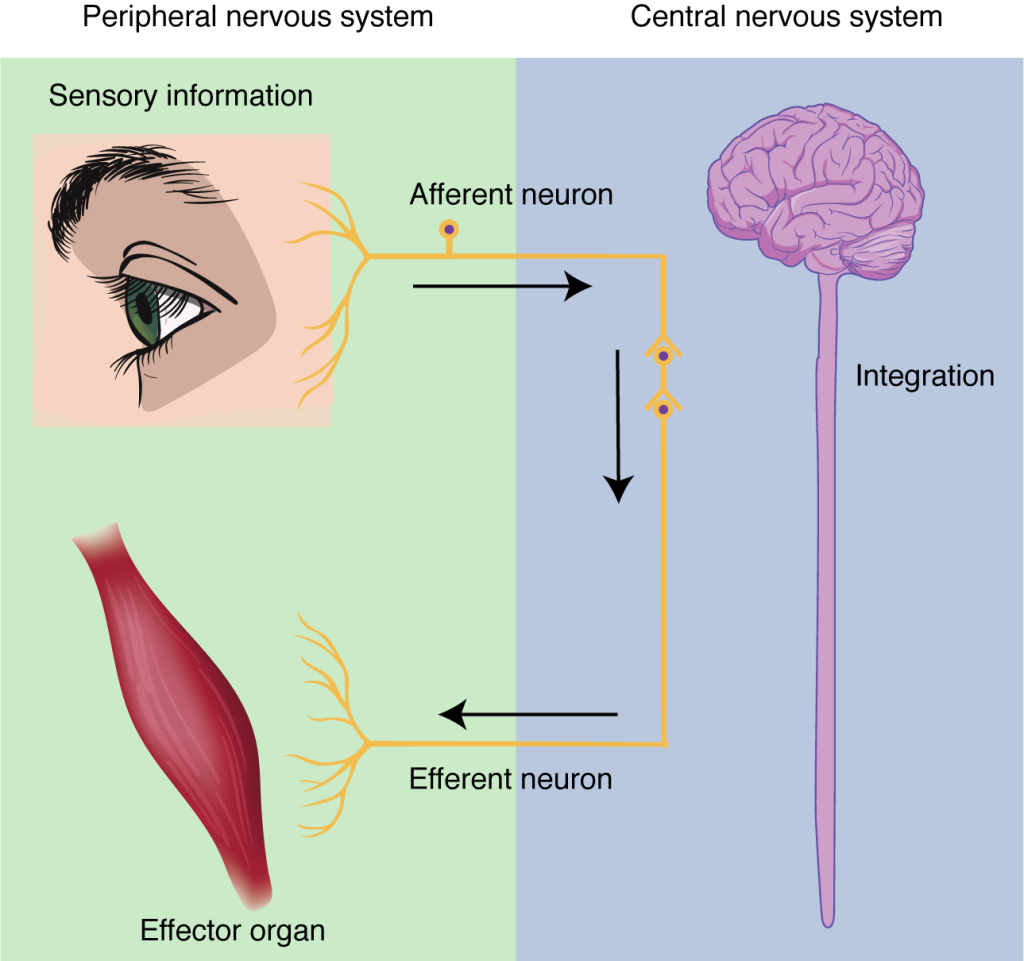

Figure 12.1.2 – Nervous System Function: Integration occurs in the CNS where sensory information from the periphery is processed and interpreted. The CNS then creates a motor plan that is executed by the efferent branch working with effector organs.

Chapter Review

The nervous system can be separated into divisions on the basis of anatomy and physiology. The anatomical divisions are the central and peripheral nervous systems. The CNS is the brain and spinal cord. The PNS is everything else and includes afferent and efferent branches with further subdivisions for somatic, visceral and autonomic function. Functionally, the nervous system can be divided into those regions that are responsible for sensation, those that are responsible for integration, and those that are responsible for generating responses.

Review Questions

An interactive H5P element has been excluded from this version of the text. You can view it online here:
https://open.oregonstate.education/aandp/?p=532#h5p-262

An interactive H5P element has been excluded from this version of the text. You can view it online here:
https://open.oregonstate.education/aandp/?p=532#h5p-263

An interactive H5P element has been excluded from this version of the text. You can view it online here:
https://open.oregonstate.education/aandp/?p=532#h5p-264

Critical Thinking Questions

1. What responses are generated by the nervous system when you run on a treadmill? Include an example of each type of tissue that is under nervous system control.

2. When eating food, what anatomical and functional divisions of the nervous system are involved in the perceptual experience?

Glossary

autonomic nervous system
functional division of the efferent branch of the PNS that is responsible for control of cardiac and smooth muscle, as well as glandular tissue
brain
the large organ of the central nervous system contained within the cranium and continuous with the spinal cord
central nervous system (CNS)
anatomical division of the nervous system that includes the brain and spinal cord
integration
nervous system function that processes sensory perceptions and produce a response
peripheral nervous system (PNS)
anatomical division of the nervous system that extends from the brain and spinal cord to the rest of the body
response
nervous system function that causes a target tissue (muscle or gland) to produce an event as a consequence to stimuli
sensation
nervous system function that receives information from the environment and translates it into the electrical signals of nervous tissue
somatic nervous system (SNS)
functional division of the nervous system that is concerned with conscious perception, voluntary movement, and skeletal muscle reflexes
spinal cord
organ of the central nervous system found within the vertebral cavity and connected with the periphery through spinal nerves; mediates reflex behaviors
stimulus
an event in the external or internal environment that registers as activity in a sensory neuron

Solutions

Answers for Critical Thinking Questions

  1. Running on a treadmill involves contraction of the skeletal muscles in the legs (efferent somatic motor), increase in contraction of the cardiac muscle of the heart (efferent autonomic motor), and the production and secretion of sweat in the skin to stay cool (sensation of temp = afferent visceral sensory, sweat gland activation = efferent autonomic motor).
  2. The perceptual experience of eating food refers to tasting food, both in terms of flavors and texture. The neurons responsible for sensing taste are afferent somatic neurons of the PNS.

Annotate

Next chapter
12.2 Nervous Tissue
PreviousNext
Anatomy and Physiology
Copyright © 2019 by Lindsay M. Biga, Sierra Dawson, Amy Harwell, Robin Hopkins, Joel Kaufmann, Mike LeMaster, Philip Matern, Katie Morrison-Graham, Devon Quick & Jon Runyeon

Anatomy & Physiology by Lindsay M. Biga, Sierra Dawson, Amy Harwell, Robin Hopkins, Joel Kaufmann, Mike LeMaster, Philip Matern, Katie Morrison-Graham, Devon Quick & Jon Runyeon is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License, except where otherwise noted.

Powered by Manifold Scholarship. Learn more at
Opens in new tab or windowmanifoldapp.org
