Monosubstituted cyclohexane

For the cyclohexane ring itself, the two conformers from the ring flipping are equivalent in terms of energy since there are always six hydrogens in axial position and six hydrogens in equatorial position. For substituted cyclohexane however, the two chair conformations are not equivalent any more. Let’s see the example of methylcyclohexane.

Methylcyclohexane has two chair conformations that are interconvertible through the ring flipping. In conformation I the methyl group occupies an axial position, and in conformation II the methyl group occupies an equatorial position. Studies indicate that the conformer II with the equatorial-methyl is more stable, with the energy of about 7.6 kJ/mol lower than the other conformer.

This difference is due to the “1,3-diaxal interaction”. In axial-methyl conformation, the methyl CH₃ group (regarded as #1 position) is very close to the axial hydrogens that is one carbon away (regarded as #3 position), and it causes the repulsion between each other that is called the 1,3-diaxal interaction. This type of repulsion is essentially the same as the gauche steric strain because the CH₃ group and the CH are in gauche position. While for equatorial-methyl conformer, no such strains applied because the CH₃ group and the CH are in anti-position. This interaction could be illustrated more clearly by Newman projection.

Since 1,3-diaxal interaction is essentially the steric strain, so the larger the size of the substituent, the greater the interaction is. For t-butylcyclohexane, the conformation with the t-butyl group in the equatorial position is about 21 kJ/mol more stable than the axial conformation.

Because of the stability difference between the two chair conformers, the equatorial-conformation is always the predominant one in the equilibrium mixture. The larger the size of the substituent, the larger the energy difference and the equilibrium constant K, so the equilibrium lies more toward the “equatorial” side. For methylcyclohexane, there is about 95% of equatorial-conformer in the mixture, and the percentage is about 99.9% for t-butylcyclohexane.

Disubstituted cyclohexane

When there are two substituents on different carbons of a cycloalkane, there are two possible relative position between the two groups, they can be either on the same side, or opposite side, of the ring, that are called geometric isomers, a type of stereoisomers (more discussions in Chapter 5). The isomer with two groups on the same side of the ring is the “cis” isomer, and the one with two groups on opposite side is called the “trans” isomer. Because the C-C bond can not rotate freely due to the restriction of the ring, the two geometric isomers can not be interconverted.

So now when considering about the conformational isomer, the stereoisomers should be taken into account as well. The general guideline for determining the relative stability of conformers for a certain isomer is:

• The steric effects of all substituents are cumulative, more substituents in equatorial positions, when possible, the more stable the conformation isomer will be.
• For different substituents, the conformer with larger substituent in equatorial positionis more stable.

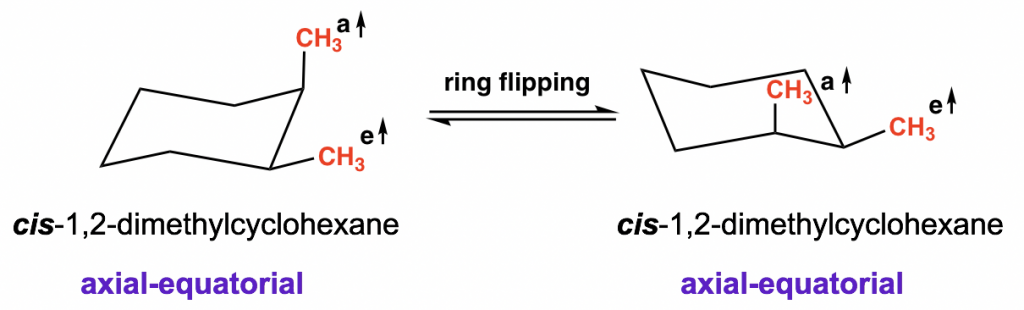

Let us start with cis-1,2-dimethylcyclohexane, and compare between the two possible chair conformations:

For both conformations, there is one methyl group in equatorial and the other methyl group in axial, so the two conformers are equivalent, have same energy and stability level.

How about the trans-1,2-dimethylcyclohexane? There are also two possible chair conformations:

In one conformation both methyl groups are axial, in the other conformation both methyl groups are equatorial. These two conformers are not equivalent, and the di-equatorial one is the more stable conformation as we would expect.

cis-1-fluoro-4-isopropylcyclohexane is the structure with two different substituents. Both chair conformations have one axial substituent, and one equatorial substituent. According to the guideline, the conformer with larger substituent in equatorial is more stable because if the large group is axial, stronger steric strain will be generated and it is less stable.
